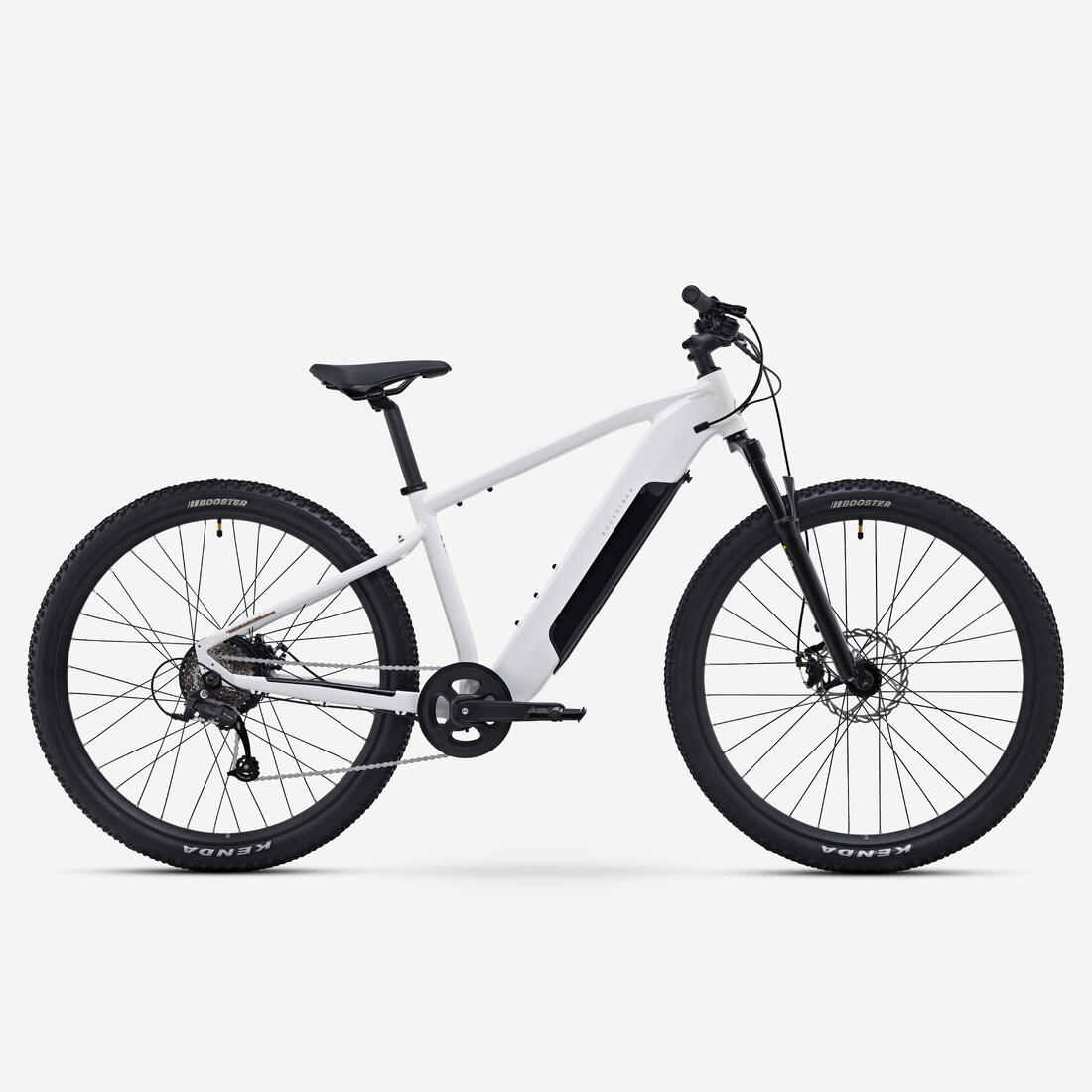

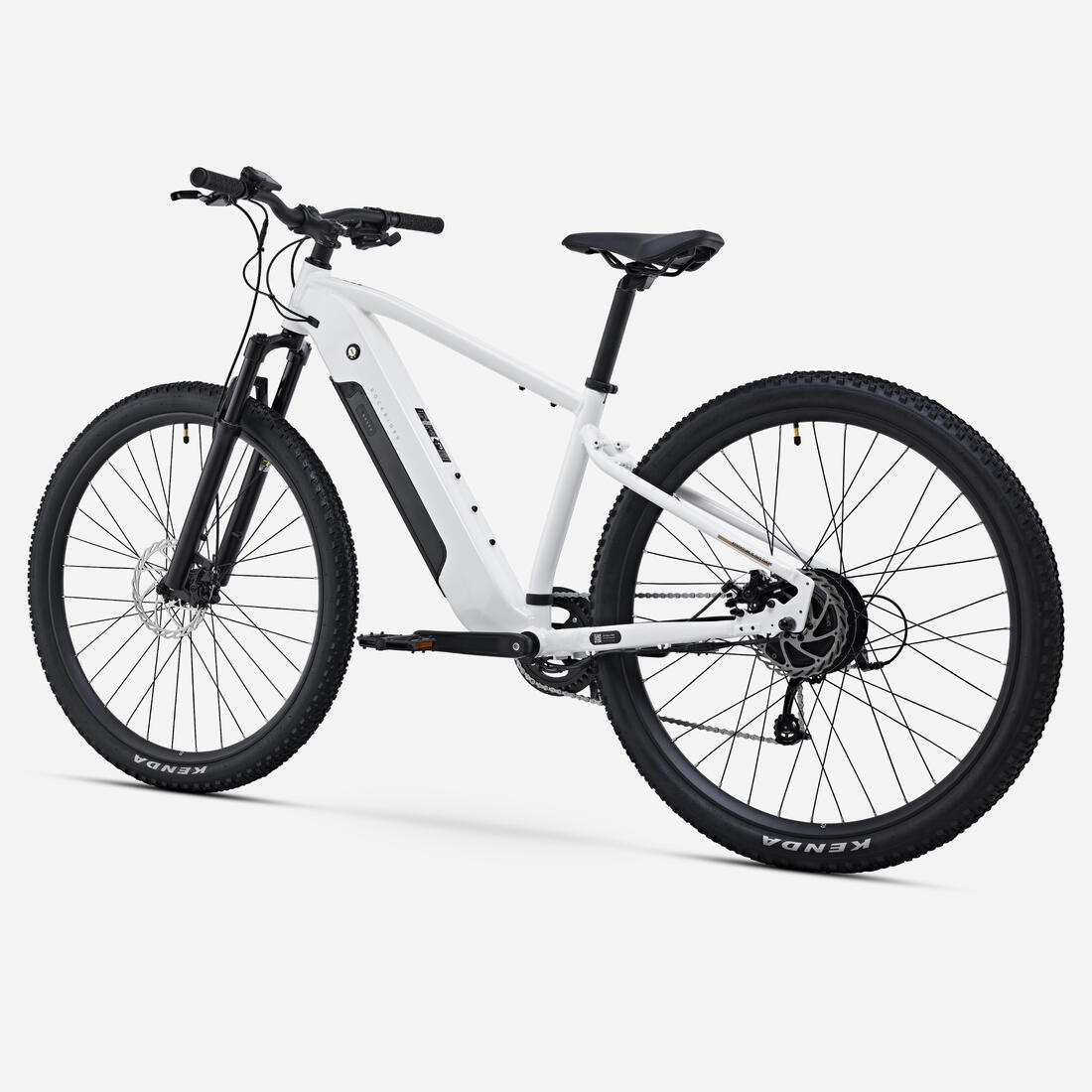

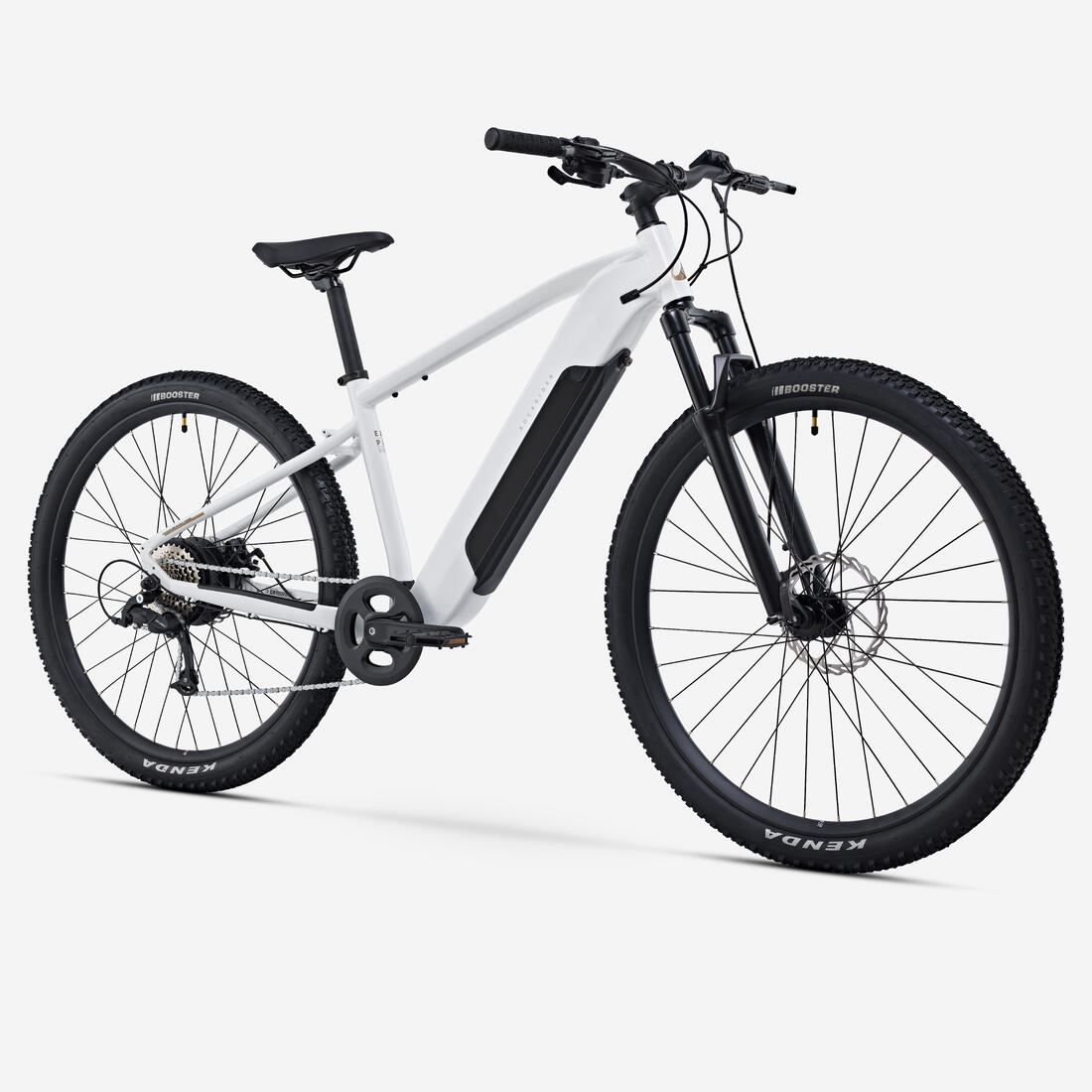

Designed for your first experiences on a mountain bike.Easy to use and suitable for accessible, hilly terrain (moderate elevation gain).
Frame
Composition: Aluminium
Travel: 100 mm fork
Rear axle: 9x145mm
Axle type: Quick Release
Seat tube diameter: 31.6 Mm
Bottle cage mount:yes (2 water bottles)
Weight
S: 24.4 kg
M: 24.5 kg
L: 24.6 kg
XL: 24.7 kg
Net weight without pedals
Suspension
Fork: Zoom
Travel: 100 mm
Dampers: 30 mm
Axle: QR 9x100 mm
Riding position

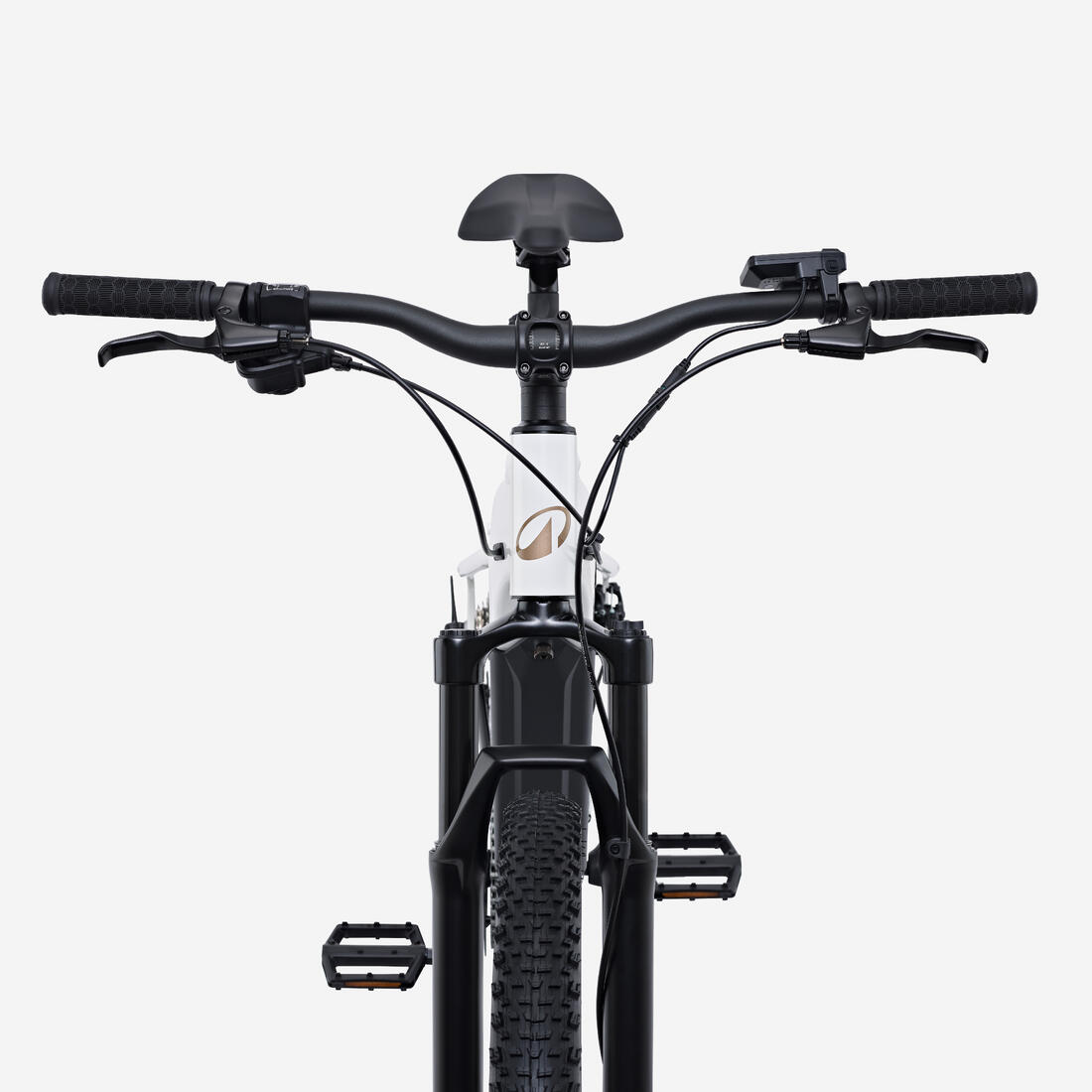

Zoom MTB handlebar
Material: Aluminium
Diameter: 31.8 mm
Width: 720 mm
Rise: 30 mm
Stem: Material: Aluminium
Angle: 6°
Sizes: 60 mm
Grips:
HL-G187
Tyre
Kenda
BOOSTER K1227 29""X2.4
Brakes
Mechanical disc brake
Number of pistons:1
Front disc: 180 mm
Rear disc: 160 mm
Disc mount: 6 bolts
Motor
Vision VRNH105 motor

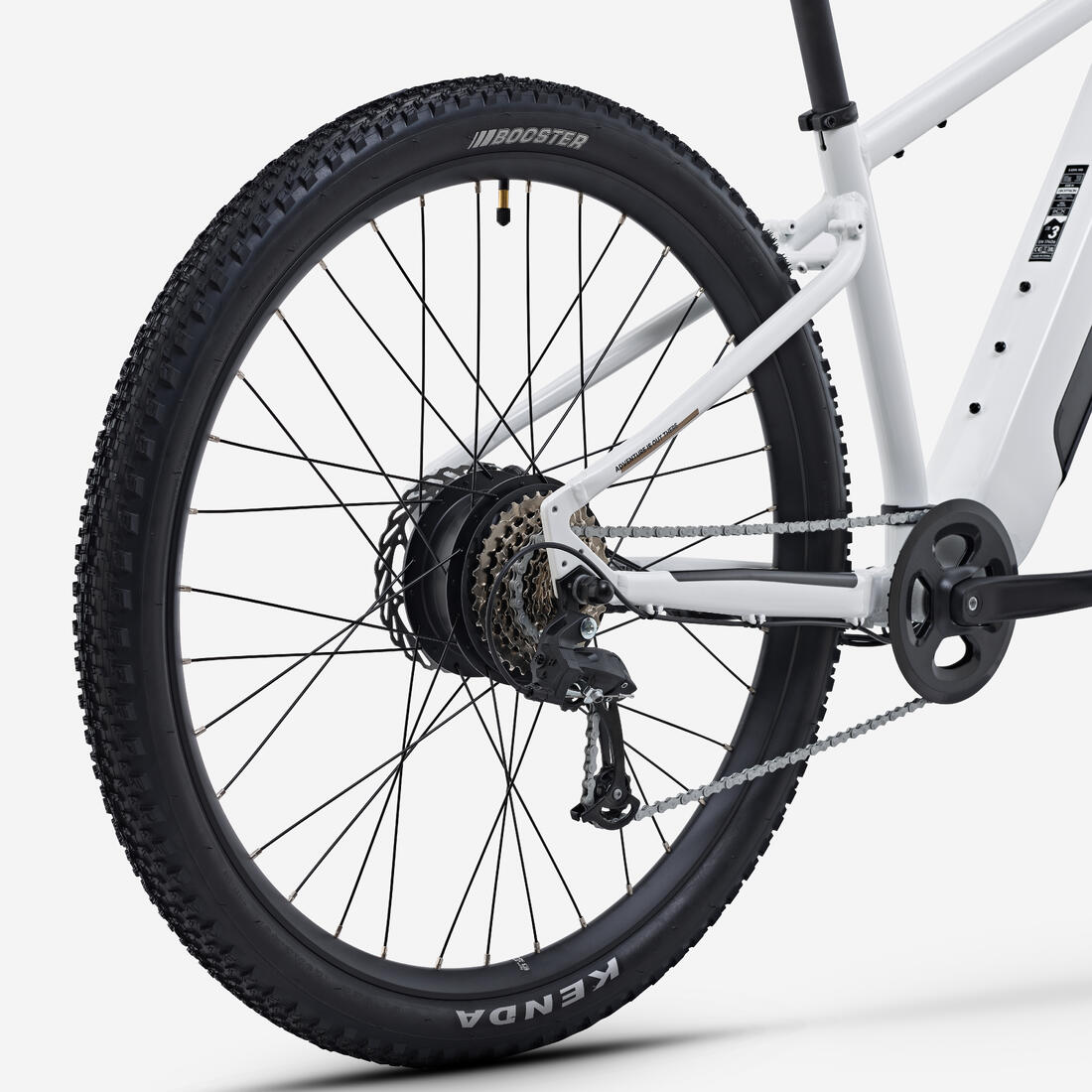

Rear wheel
43 Nm torque
Cadence sensor
Electric assistance cuts out above 25 km/h in accordance with European regulations
Battery

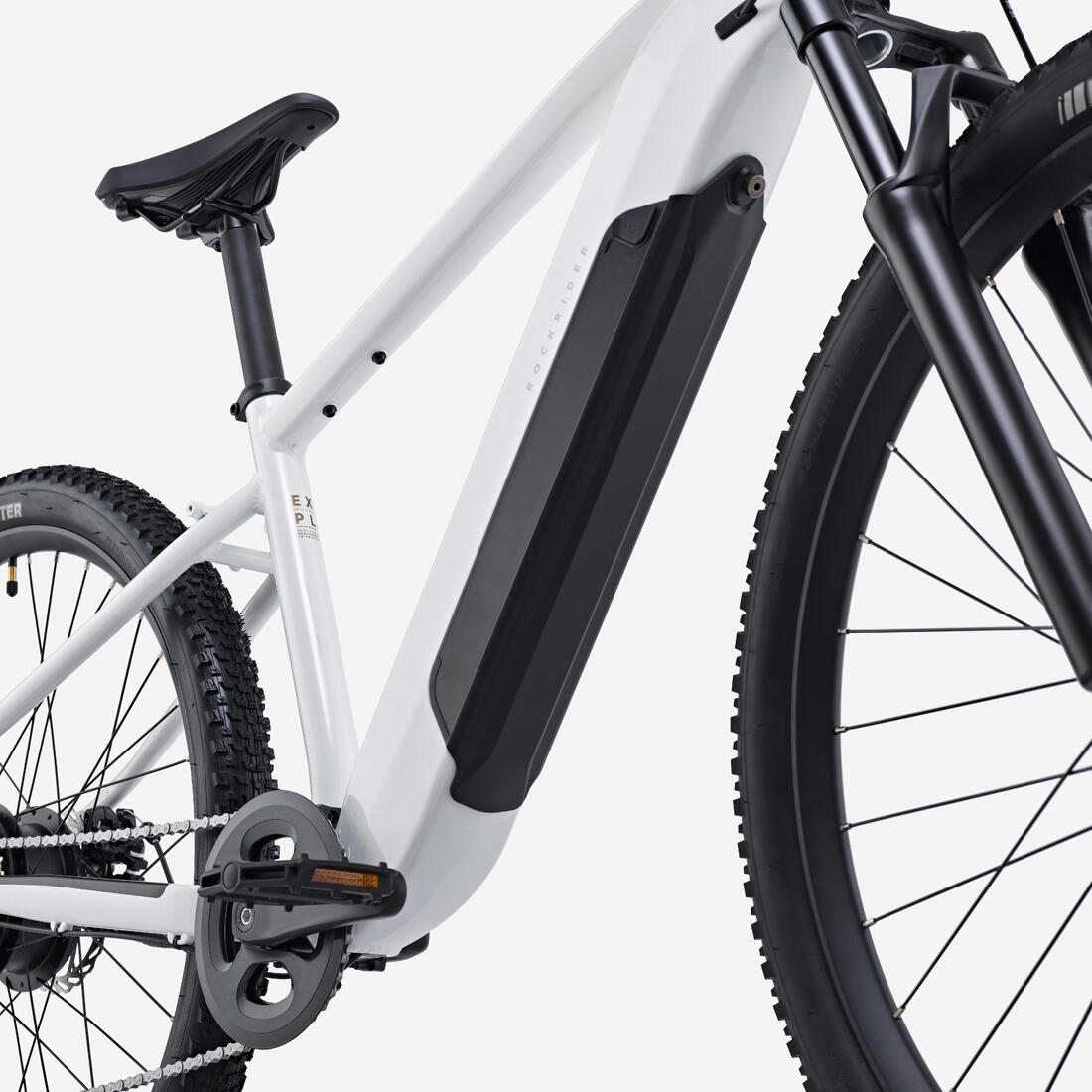

Battery fully integrated into the frame with low output and protective cover.
Capacity: 360 Wh
ACCESSORIES INCLUDED
Your MTB comes with:
bell,
lights,
wheel reflectors
and pedals.
Pedals
Resin platform
In a nutshell
Weight: 24.5 kg (size M without pedals)
Rear wheel motor
Torque: 43 Nm
Power:316 W max
Battery:360 Wh
Connectivity: NO
Frame material: Aluminium
Type: Hardtail
Wheel size: 29"
Fork travel: 100 mm
Drivetrain: 1x07
Brakes: Mechanical disc
Seat post: Fixed
DISPLAY

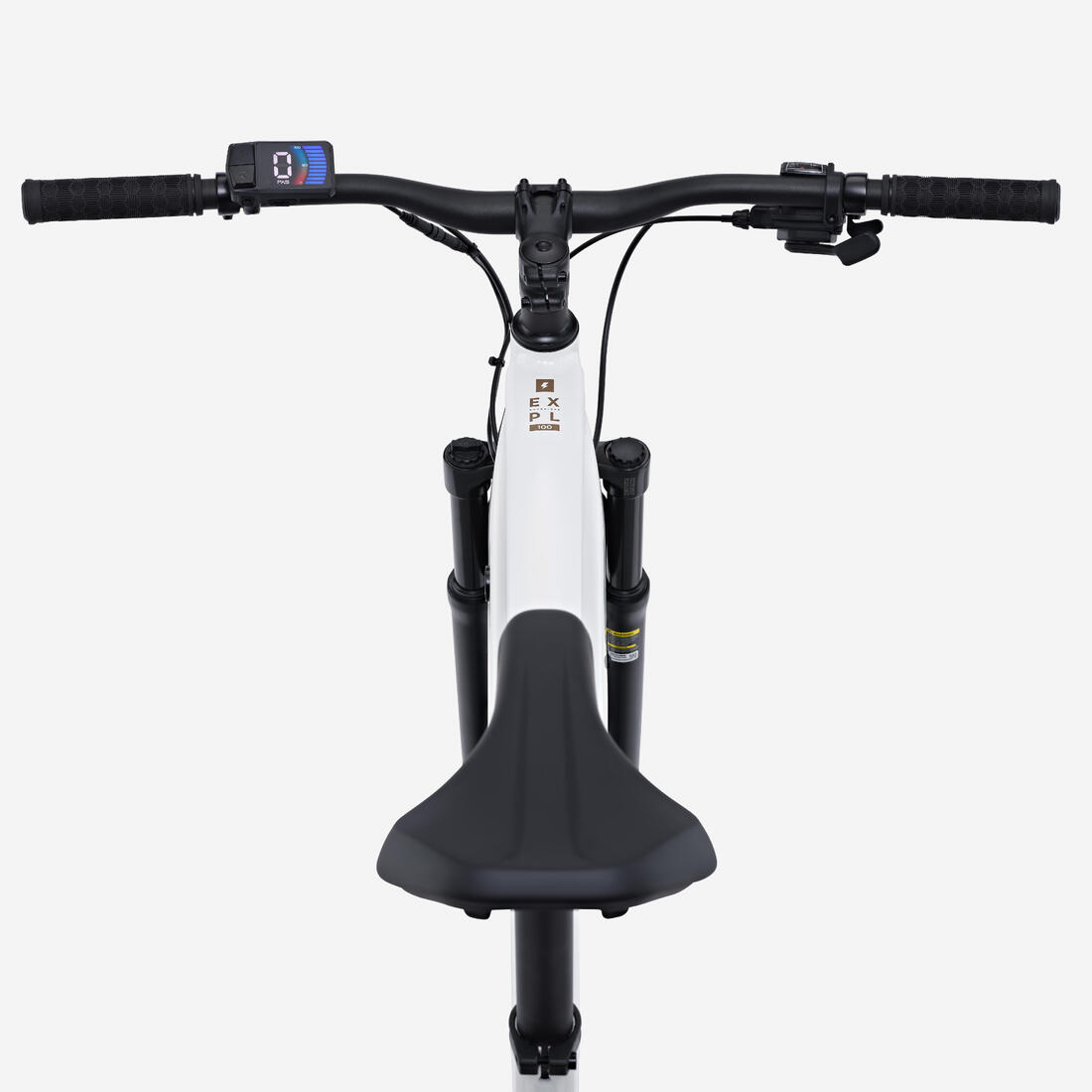

Display E410 LED VISION
LED display
3 assistance modes:1, 2, 3
Pedestrian mode with walking assistance.
Port USB C (5V 500 mAh)
The control unit is installed on the left side and tilted downwards for better ergonomics when changing modes and for maximum protection in the event of a fall or rollover.
Drivetrain
Microshift RD-M25L X7
Single chainring: 38 teeth.Cranks: 165 mm
Rear derailleur: 7 speeds
Freewheel: 14-34
KMC Z7-RD chain
Saddle / Seat post
GESKO saddle
Seat post
Material: Aluminium
Diameter: 31.6 mm
Length: S/M 350 mm, L/ XL 400 mm"""
Wheels
29" ZY 30 double-wall aluminium wheel
Internal width:30 mm
Number of spokes: 32 at the front, 36 at the rear
Disc attachment:6 holes
Freewheel hub: screw-on
Types of axles:QR, 9 mm at the front and fixed solid axle with nut at the rear.
TUBELESS READY: no"
This e-MTB is ideal for improving your skills and discovering new horizons on off-road trails.It's designed to help you tackle the elevation changes on hilly trails.
smooth pedalling
(Re)Experience your first mountain biking sensations with the cadence sensor.
power
Tackle your first slopes with the hub motor's 43Nm torque
control
Enjoy touring: upright position and 29" wheels
cushioning
100 mm suspension to handle obstacles
braking power
Easily temper your braking with the disc brakes
Designed for your first experiences on a mountain bike.Easy to use and suitable for accessible, hilly terrain (moderate elevation gain).
