Embrace active rides in both city and country. Compatible with the Ride app, this bike enhances the experience and optimizes journeys.
Getting on and off

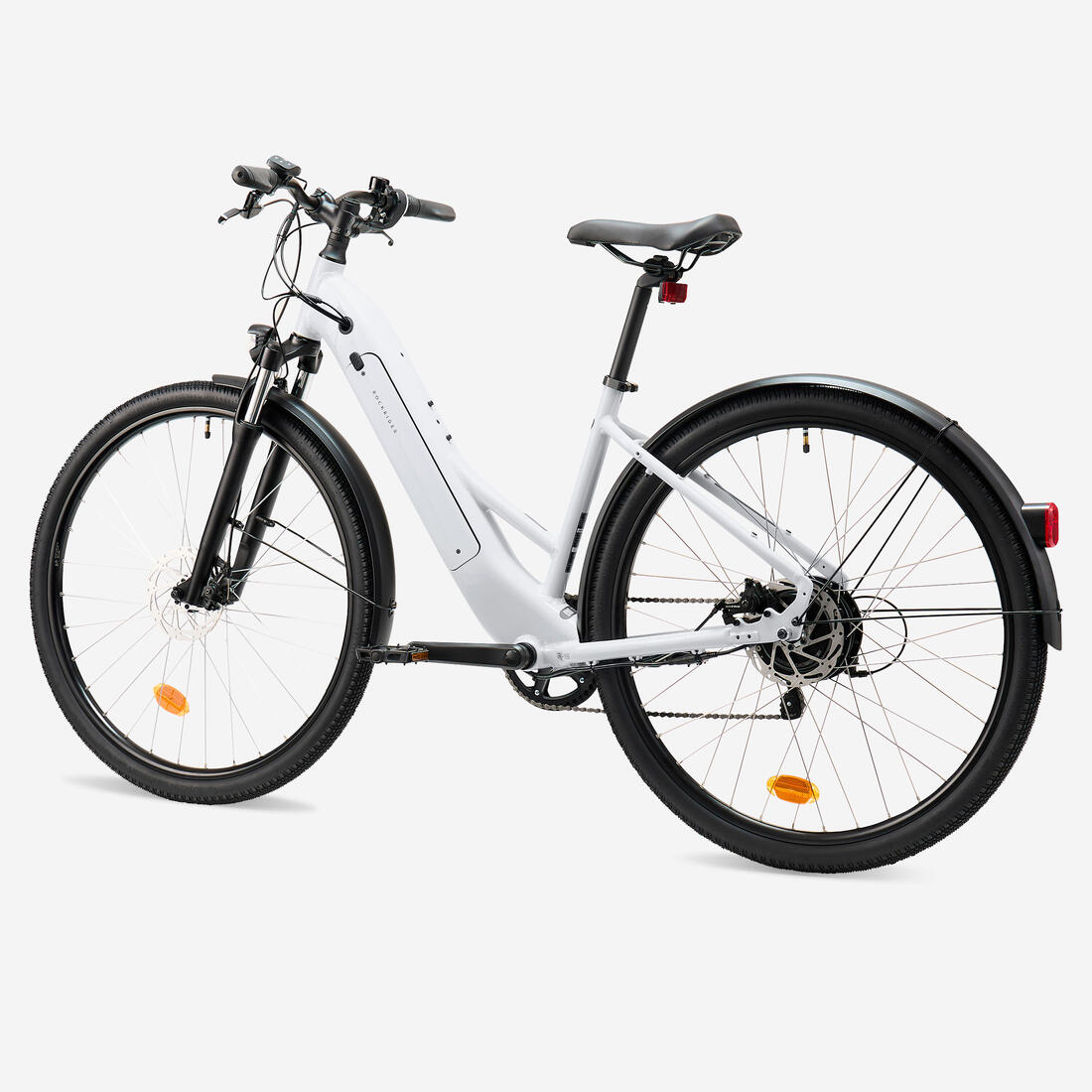

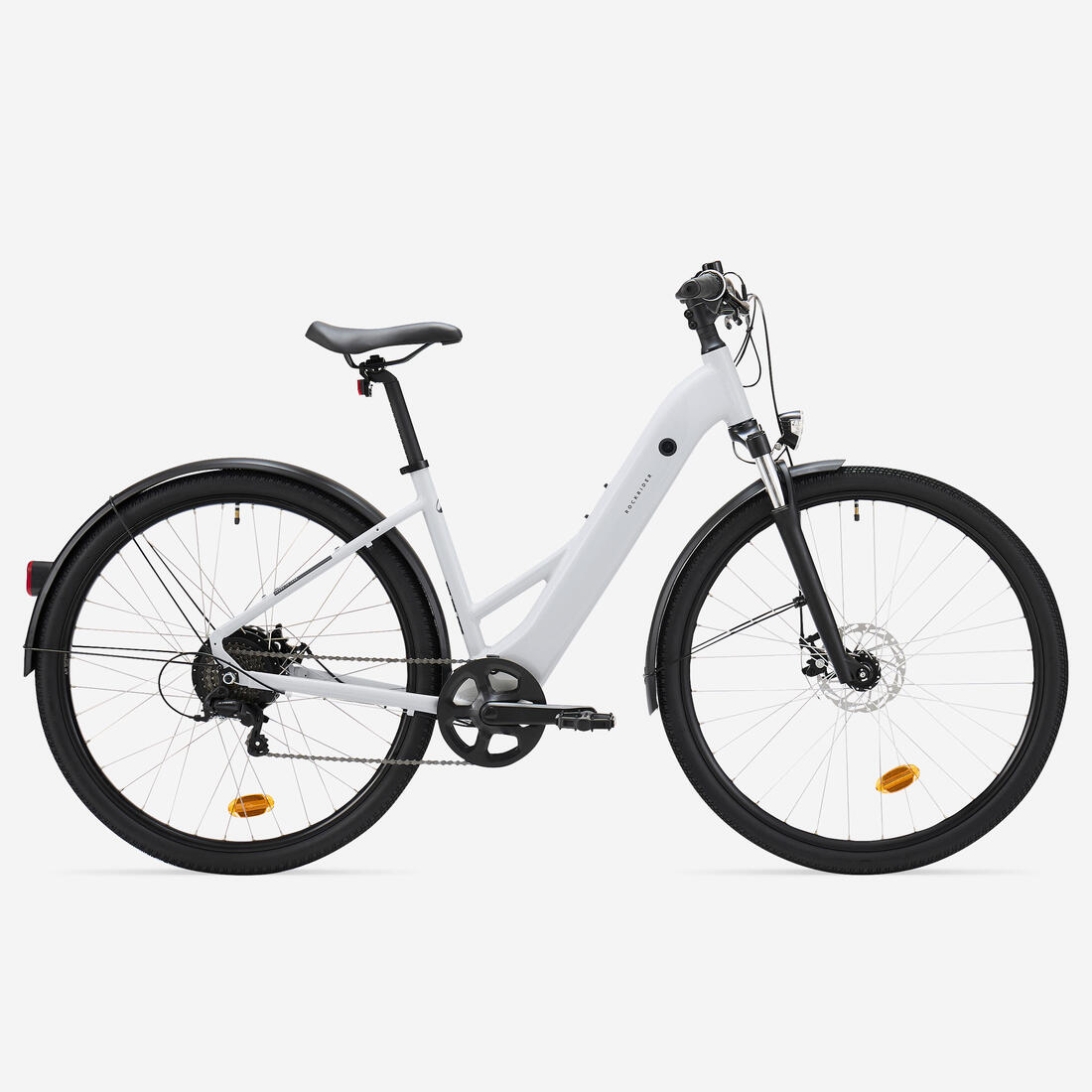

We designed two versions of the e-actv 100:
- Low frame version: The low frame version is easy to get on and off. This is especially useful when using a child seat (ref. 8893262).
- High frame version: The high frame version is more rigid and gives you more precise steering, particularly on rough terrain and when carrying a heavy load (ref. 8893260)

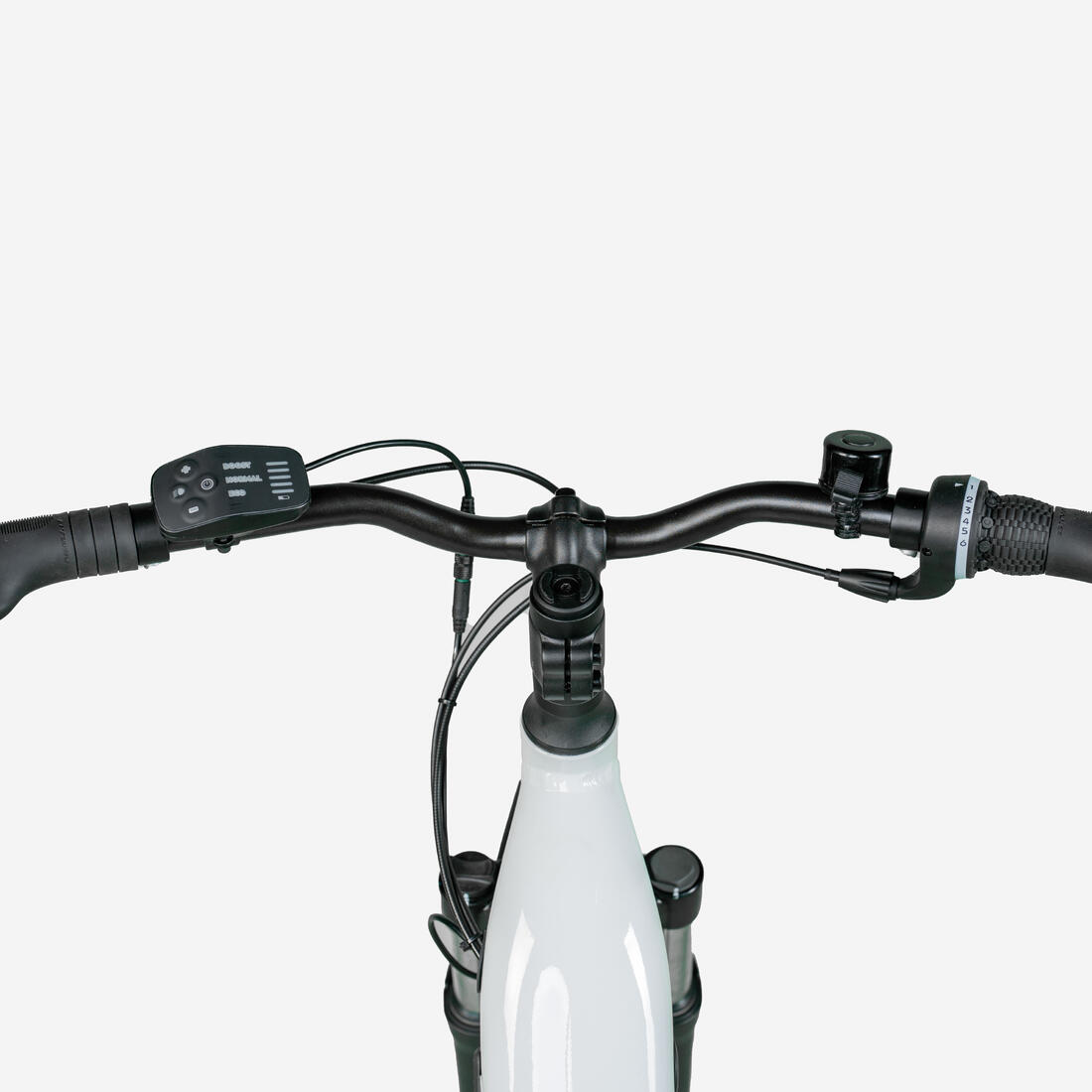

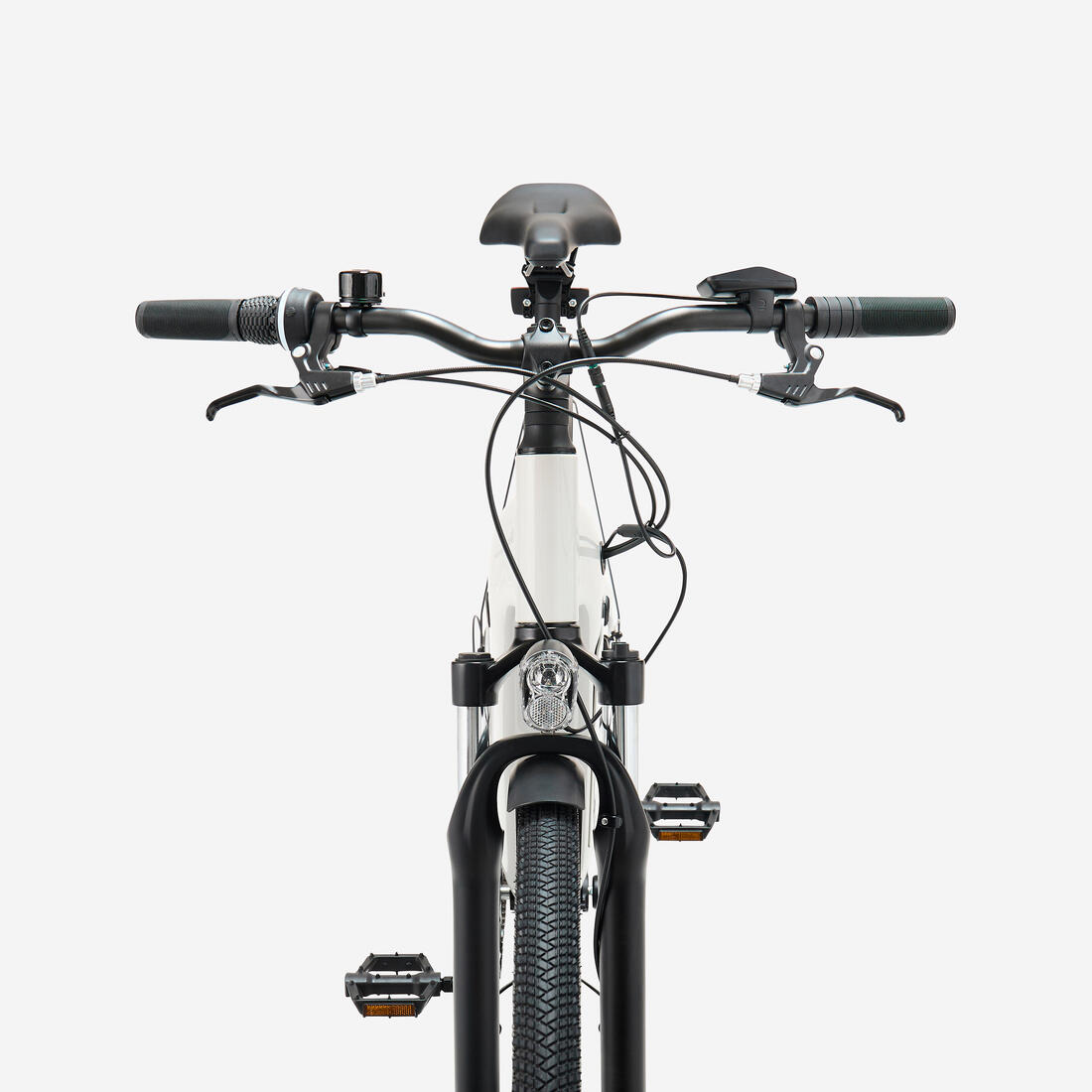

Handlebar grip
Handlebar: Width: 640 mm
- Diameter in centre: 25.4 mm
- Material: steel
Stem: Length S/M: 60 mm
Size L, XL: 75 mm Diameter: 25.4 mm
- Material: aluminium
Headset: 1⅛".
BTWIN city 500 ergonomic grips.
Controller
LED control screen on the handlebar, next to the left grip. Available info:
- Current assistance mode
- Remaining battery level
- Light status (on/off)
Functions:
- Turn the bike on/off
- Select the assistance mode
- Turn the lights on/off
Connect your bike to your phone to access speed, distance and GPS route info.

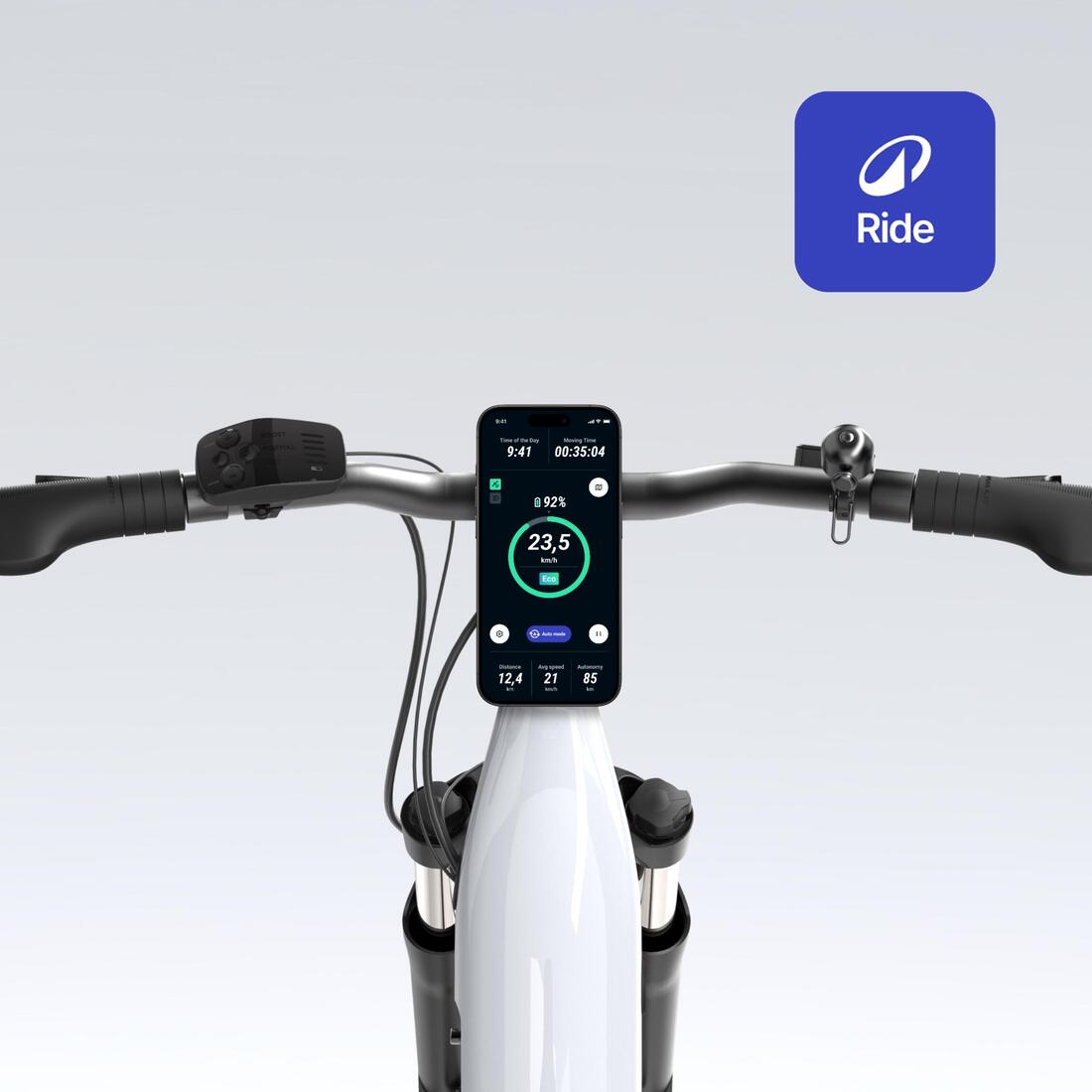

Decathlon Ride App compatibility
Your cycling experience will be enhanced with the Decathlon Ride app, compatible with iOS 8+ and Android 7+. By connecting your bike via BLE to Decathlon Ride, you'll have access to these features: Live performance:
Live performance: view your performance in real time (speed, time, etc.) Automatic mode: This mode dynamically manages the bike's motor assistance according to your physical effort and an ideal effort range (central motor only).
Motor characteristics
Rockrider 36V brushless motor in the rear wheel. Max power output: 250W
Max rotational torque: 45 Nm
Ideal for moderately hilly terrain, up to 10% gradients and 500m of continuous altitude gain. Not recommended for mountain passes. Electrical assistance cuts out above 25 km/h in accordance with EU regulations.
Battery charging
Fully charged in 4.5 hours with the included 2A charger. The battery must be removed using the provided keys to charge it.
Compatible with Rockrider 4A chargers (Ref.: 8753941) for faster charging. When should I charge my battery? Lithium-ion batteries do not have a memory effect, so they can be recharged at any time. We recommend charging your battery regularly before it fully discharges to maintain optimal performance.
Saddle
Rockrider mountain walking saddle. The saddle height can be adjusted using an Allen key to reduce the risk of theft. A quick-release clamp can be installed. Ask your sales assistant.
What does e-actv 100 mean?
The abbreviation ACTV stands for "ACTIVE". We designed this bike for everyone who wants to embrace a more active lifestyle and reconnect with nature. The "E" means that this is an electric assist bike.
SIZES
Available sizes: • Size S/M: 1.50 m to 1.72 m tall. • Size L/XL: 1.72 m to 1.95 m tall. If you are between 2 sizes:
Take the smaller size if you want a more upright position. Take the larger size if you want a more reclined position.
3 assistance levels to manage your effort
You can choose from 3 assistance levels at any time. Simply press the + or - button on the controller located on the handlebar to switch between modes.
Mode 0 – Assistance off (0 watts)
Eco Mode – Light assistance (70 watts)
Normal Mode – Moderate assistance (125 watts)
Power Mode – Maximum assistance for more challenging climbs (250 watts)
Decathlon Ride App Connectivity
Activity history: Find statistics on your rides (duration, km), including a power page to understand your consumption and mode usage. Data sheet: Access technical information about your bike on a dedicated page. Update: Update your bike's display via the app, without leaving home.
Support and loyalty: Access experts and the Decathlon program.
Weight
22.9 kg in size L/XL.
Maximum load
The e-actv 100 is approved for a maximum total load of 120 kg: user + bike + extra load (bags, children, etc.).
Brakes
Mechanical disc brakes. 160 mm disc front and rear.
Integrated, removable battery
36 V - 356 Wh lithium-ion battery.
Fixed to the bike frame for better integration and protection.
Quick release with key (3 keys included) to recharge it. Integrated carrying handle. 500 guaranteed charging cycles without loss of battery life. Weight 2.3 kg
Can you ride with a discharged battery? Yes. When the battery is discharged, the weight of the electric system makes the bike harder to ride than a traditional hybrid. But you can still ride it.

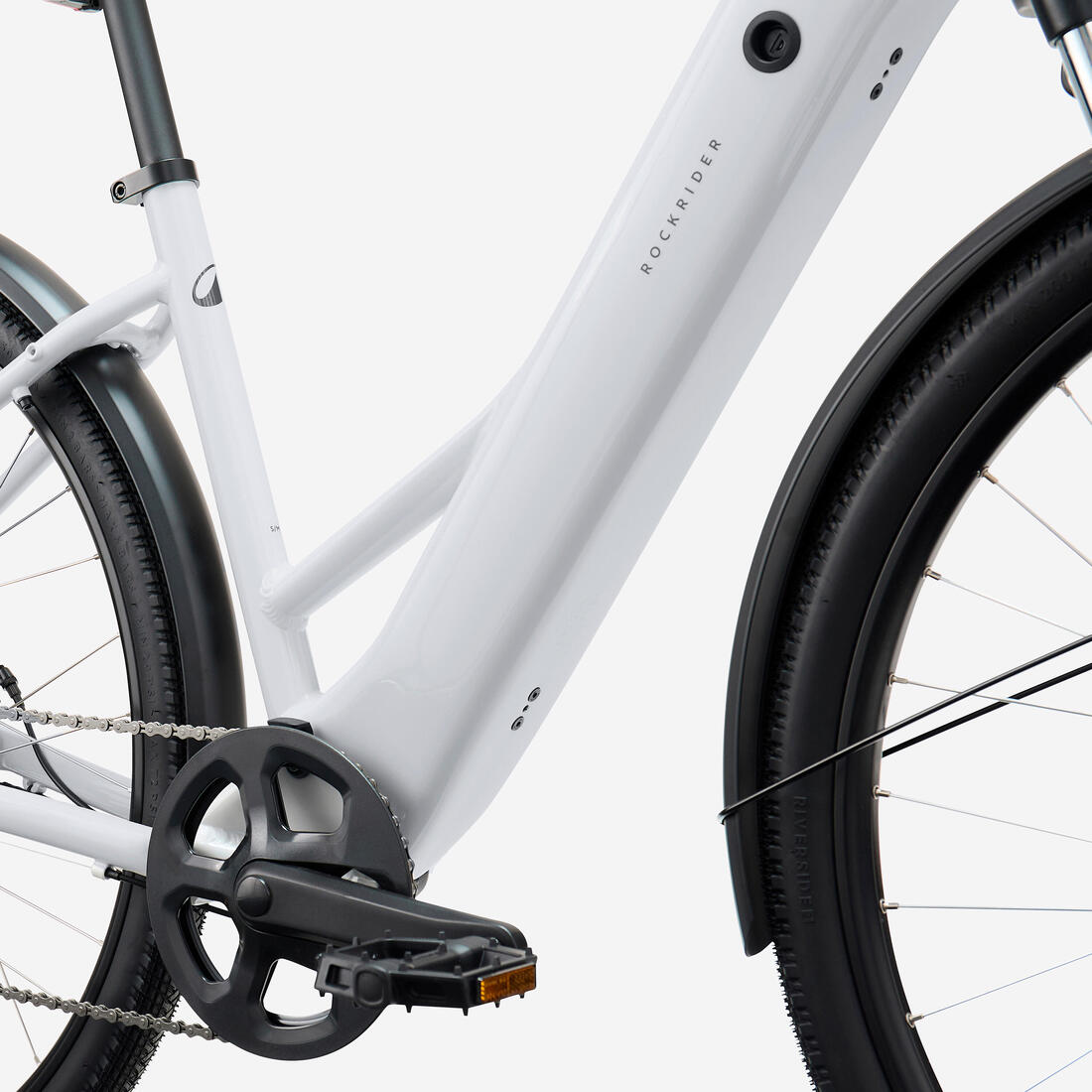

Frame
Aluminium frame. Hydroformed down tube. Maximum tyre size compatible with mudguard: 700x47 mm.
COMPATIBLE ACCESSORIES
Compatible with: • rear kickstand (ref. 8784182). Kickstand installation only requires two screws. • rear pannier rack: Compatible with most pannier racks on the market. We recommend our dedicated rack (ref: 8828232).
• frame lock (ref. 8735625)
• child seat on basket rack
• child seat on frame
• bottle cage: 1 frame fixing point. For a second bottle, a fabric handlebar holder (ref. 8487122) is recommended.
PEDALS
We've chosen to use wide platform pedals to keep you more comfortable and give you a sense of stability. Resin pedals.
Wheels
Rims: Reinforced asymmetrical wheels (double-walled)
Wheel dimensions: 25-622 (ETRTO). Not tubeless compatible
Spokes:
32 front and 36 rear
Anti-rust treatment (galvanized)
Front hub:
Sealed cartridge bearings. Anti-theft axle. Requires a 5 mm wrench (provided) to remove the front wheel. Compatible with a quick-release axle. Rear hub: Motor. Full axle fixed with a nut. Requires a 19 mm wrench to remove the rear wheel.
Bicycle trailer compatibility
The e-actv 100 is compatible with trailers: - Hamax
- Original Bicycle
Thule and Croozer bicycle trailers are not compatible.
Integrated lights
Lights powered by the bike's battery:
- Front AXA Echo 15 LED light. Power: 15 lux. - Rear LED light fixed to the rear mudguard. The rear light remains active (at lower power) for 4 minutes after the bike is turned off.
Electrical and electronic components resistant to dust and rain.
All electrical components (controller, motor, battery, etc.) are dust and rain resistant (IPX5). This means you can leave your bike out in the rain without the battery. Any water that might get into the hole where the battery would normally be will drain out of the bike and won't damage the parts. Do not wash with a pressure washer.
Up to 70 km range with your electric mountain bike
The battery range varies depending on the weight carried (user + load), altitude gain, wind and outside temperature. Our tests have estimated the maximum battery range on relatively flat terrain with no load (no backpacks or trailers):
Eco mode: up to 70 km
Normal mode: up to 50 km
Boost mode: up to 30 km

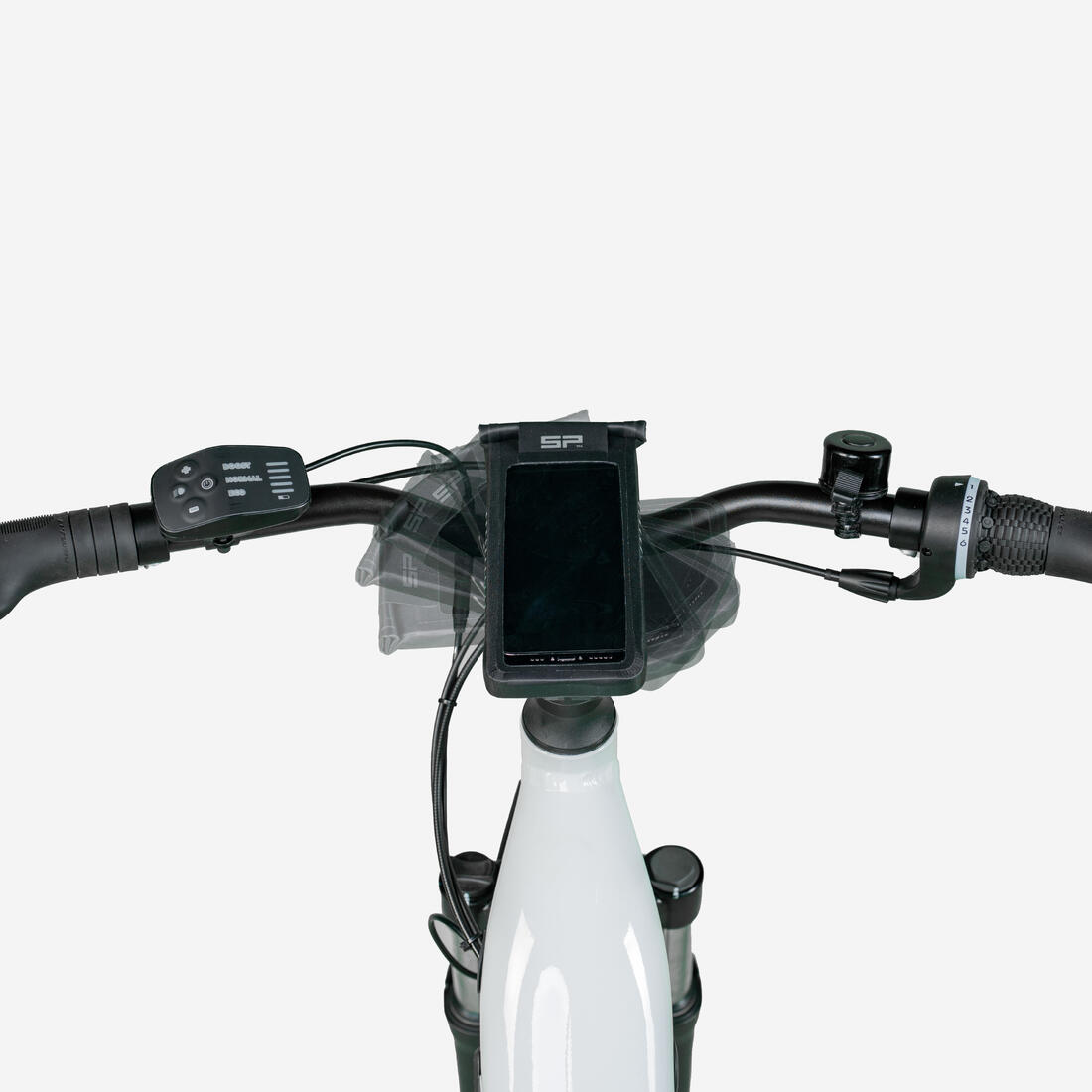

SP Connect integrated smartphone mount
The e-ACTV 100 is equipped with an SP Connect mount, making it easy to attach your smartphone to the stem. A wide range of SP Connect smartphone cases and universal mounts are available on the Decathlon website. The case or pouch is not included with the bike. SP Connect offers a fast, simple and durable mounting solution for bikes and motorcycles.
Mudguards
The mudguards ensure there is always 6 mm of space between the tyre and the mudguard. They allow you to ride on dirt tracks without mud getting stuck between the tyre and the mudguard.
SUSPENSION
Rockrider Trekking suspension fork. Spring: coil
- Steering tube: 1⅛" aluminium
- 60 mm travel
Tyres
Rockrider Trekking all-terrain tyres offering excellent puncture protection (maximum level of 4.5/5). Dimensions: 700x47 mm (ETRTO 47-622)
Puncture protection level: 4.5/5
Protection type: Double polyamide protection
Casing: 60 TPI
Tubeless compatible: No
Recommended pressure: around 3 bar.

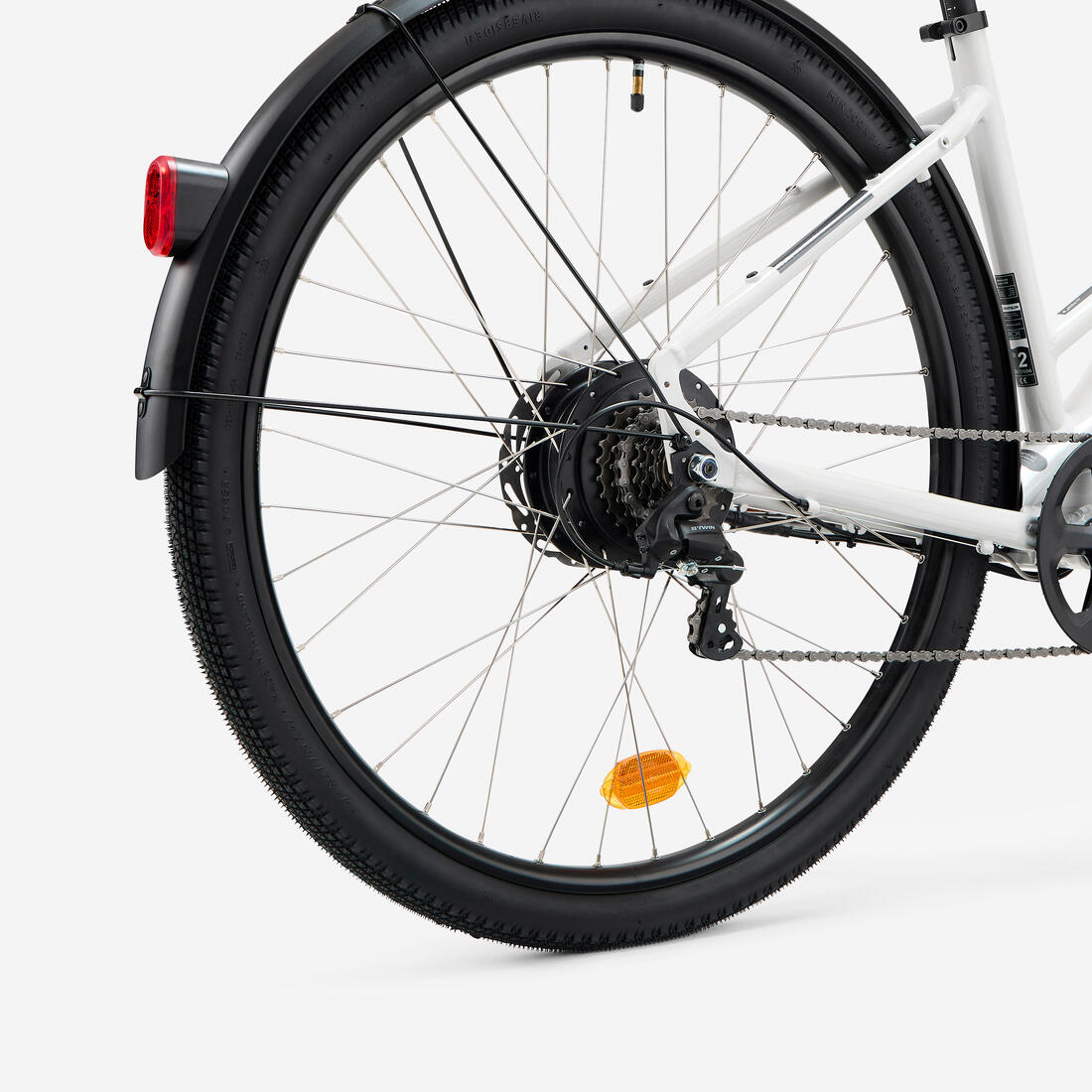

Transmission system
- Gear shifter: Rotary grip
- Number of speeds: 6 speeds
- Freewheel: Screw-on
- Single chainring: 44 teeth
- Gears: 14/28
- KMC Z6 CL573 corrosion-resistant chain with quick link
- Rear derailleur: Microshift RD M21
- Anti-derailment chainring
The E-ACTV 100 is your multi-functional electric bike. Perfect for weekend adventures on light trails and your daily commutes in the city.
Torque
Rockrider 36V brushless motor in the rear wheel. Maximum torque: 45 Nm.
Versatility
Designed for city, road, and trails. 60 mm front suspension. Hybrid tires.
Puncture resistance
Reinforced tire with double polyamide protection. Puncture protection: 4.5/5.
Embrace active rides in both city and country. Compatible with the Ride app, this bike enhances the experience and optimizes journeys.
